The VM090Q is a packaged power amplifier matched through 50Ω RF accesses and operating from 8 to 11 GHz. It can provide an output power up to 20W and associated power added efficiency of 38% in pulsed mode.

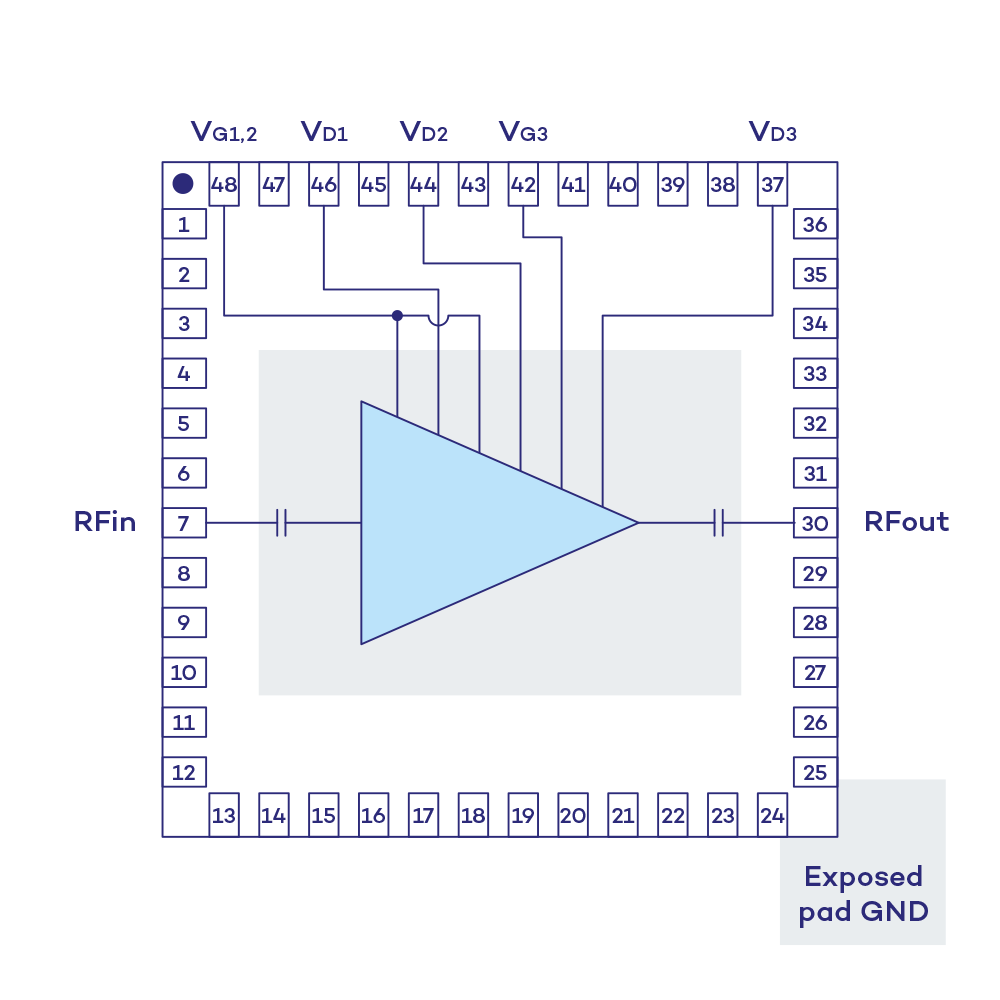

The VM090Q a plastic 48 leads 7 x 7 QFN designed to a surface mount design board. The VM090Q integrates the VM090D VectraWave HPA.
VM090Q
8 to 11GHz - 20W
GaN Power Amplifier
GaN Power Amplifier
POWER AMPLIFIERS > 3W
Download
Datasheet
Features
- Frequency range 8 – 11GHz
- Output Power 43dBm @Pin = 21dBm
- PAE 38% @Pin = 21dBm
- Linear Gain 26dB
- DC bias VD = +28V, lDQ = 260mA, VG = -2.35V (Typical)
- QFN size 7 x 7 (mm)
