VM101D

8 to 11GHz / 5W
GaAs Power Amplifier

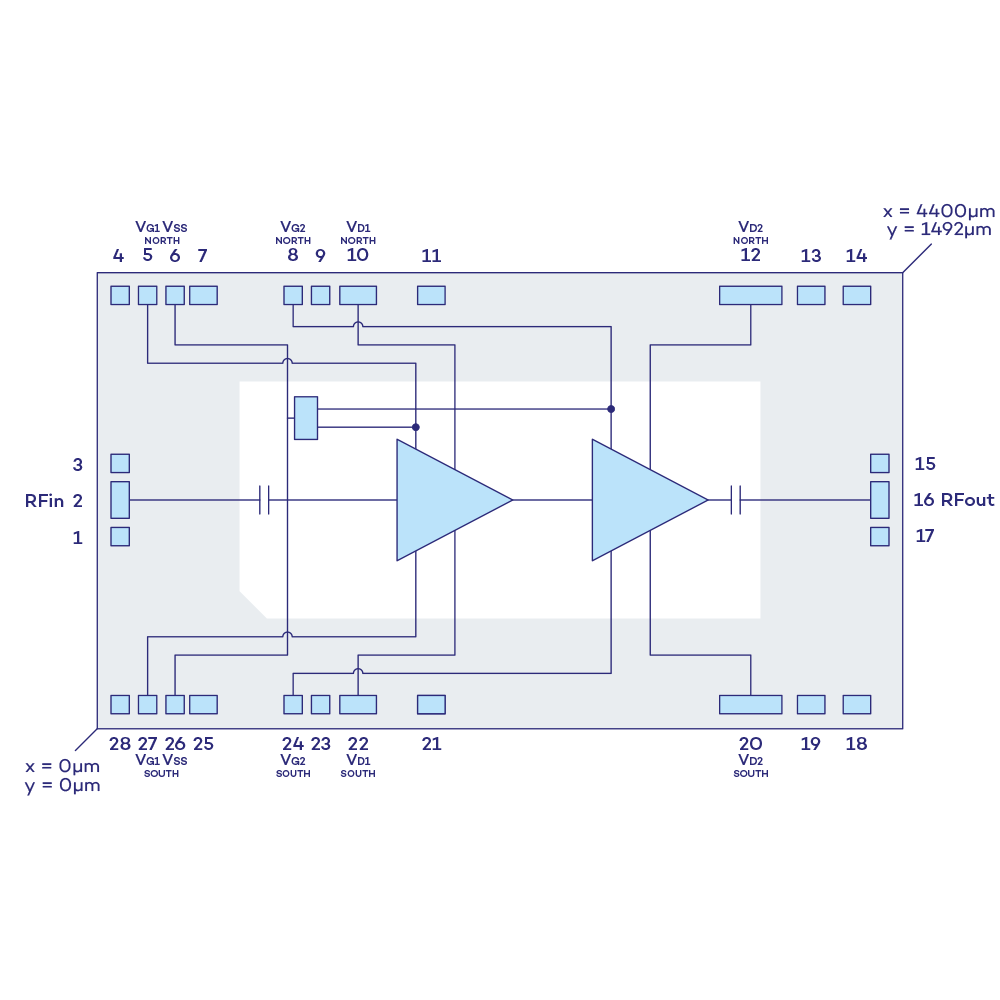

The VM0101D is a 2 Stages High Power Amplifier MMIC operating in the frequency range from 8 GHz to 11Ghz.
The device delivers more than 37dBm saturated output power and provides 22dB of small signal gain from 8GHz to 11GHz. The designhas been optimized to provide high efficiency higher than 40% under +8V supply voltage.

POWER AMPLIFIERS > 3W

Download

Features

  • Frequency band: 8 to11GHz
  • Output Power (@ Pin=16dBm) > 37dBm
  • PAE (@ Pin=16dBm) > 40%
  • Small Signal Gain: 22dB
  • 50Ω, AC coupled RF input and output access.
  • Power supply: VD= +8V; VG= -0.8V
  • Chip size: 4.4 x 1.492 x 0.1mm
