VM056Q

2 to 20 GHz – 15 dB – 27 dBm
Medium Power QFN MMIC

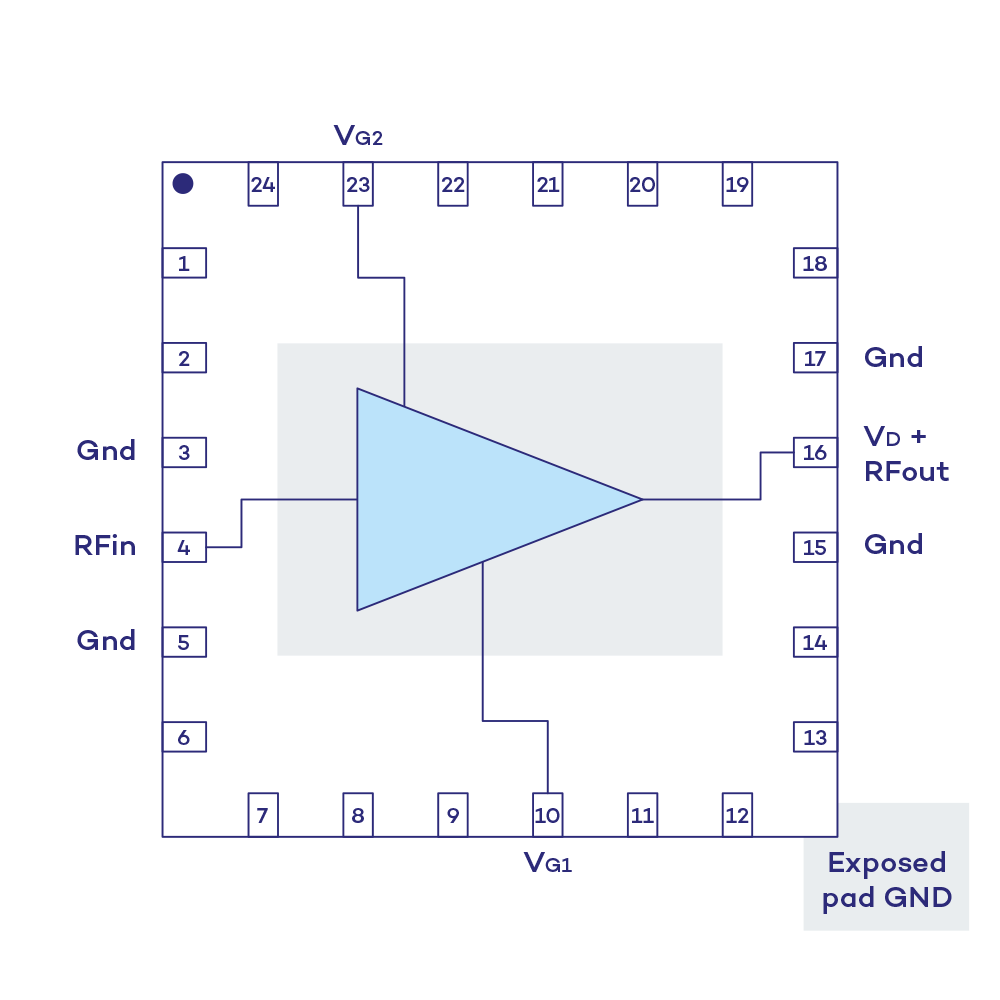

The VWA 0000942 AA is a MMIC distributed amplifier in a 5x5mm 24 leads Plastic Surface Mount Package (ROHS).
This component uses VWA5000056AA Vectrawave die.
The device is operating in the frequency range 2 to 20 GHz and is capable of +27 dBm of output power in saturation regime. Linear gain is typically of 15 dB. The Design has been optimized to provide high efficiency, typical operating supply current is as low as 290 mA with a drain voltage at +8 V.

WIDEBAND AMPLIFIERS

Download

Features

  • Distributed amplifier pHEMT GaAs MMIC
  • Wideband : 2 to 20 GHz
  • High output Psat : +27 dBm
  • Small signal gain: 15 dB
  • 50Ω RF input and output
  • AC coupled RF input, DC coupled RF output
  • Power supply: 290 mA @ +8 V (typical conditions)
  • Package : QFN 5×5 mm 24 Lead
