VM060D

2.5 to 5GHz / 11dB / 24dBm
Medium Power Amplifier

The VWA5000060AA is a medium power am- plifier designed on a 0.15μm pHEMT process.
The device is capable of +24dBm of output power at saturation regime. And up to +22dBm of output power at 1dB of gain compression. It provides up to 11dB of linear gain from 2.5 to 5GHz. The supply current is as low as 180mA when operating with VD= +4V.

DRIVER-AMPLIFIERS < 3W

Download

Datasheet

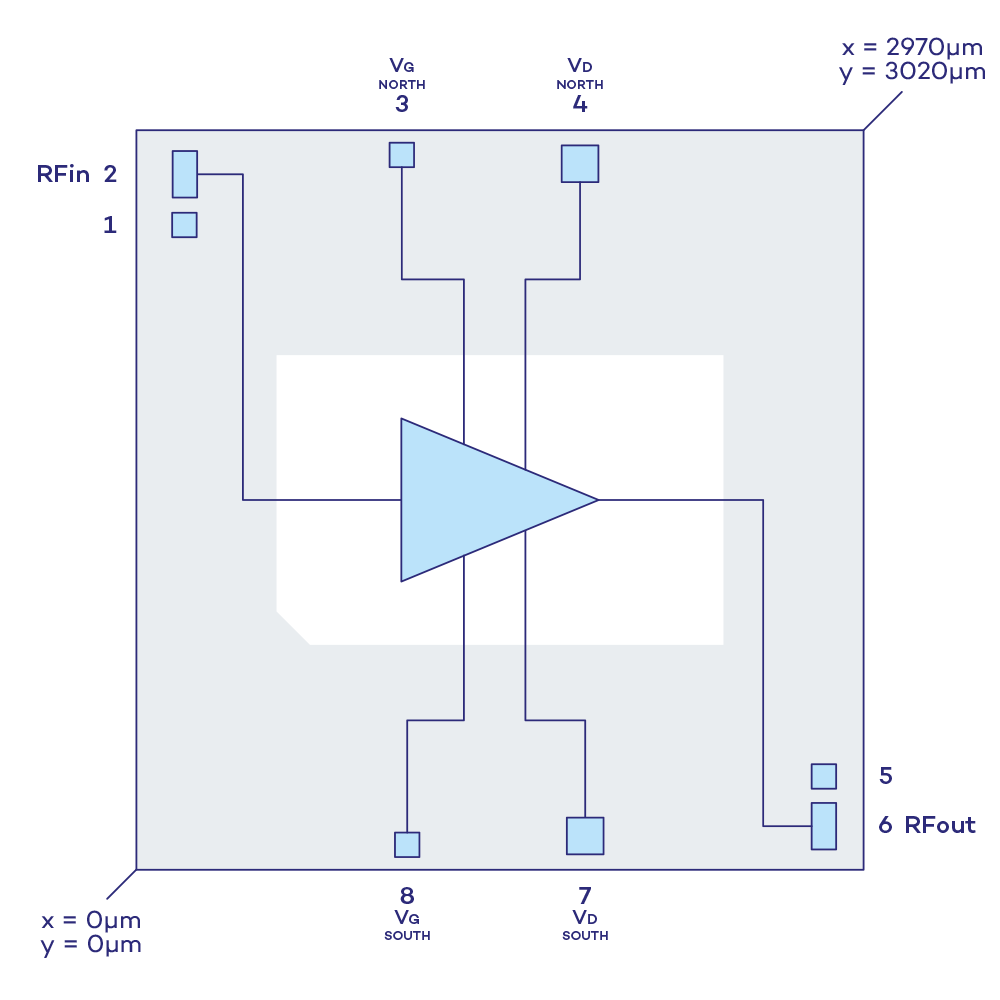

Features

Medium Power amplifier pHEMT GaAs MMIC
Wide band: 2.5 to 5GHz.
Balanced amplifier
AC coupled In, AC coupled Out
P1dB >+22dBm 2.5 to 5GHz
PSAT: +24dBm 2.5 to 5GHz
Small signal gain: 10dB from 2.5GHz to 5GHz
Power supply: 180mA @ +4V
Chip size: 3.02 x 2.97 x 0.1 (mm)
