8.5 to 10.5GHz / 20dB / 40dBm
GaN/SiC Transceiver QFN 8x8mm

The VWA5000091AA is a transceiver designed on a 0.25μm HEMT (High Electron Mobility
Transistor) process on GaN/SiC technology.
The device is packaged in a 8×8 mm 56 leads Plastic Surface Mount Package (ROHS).
This component uses VWA 5000091AA VectraWave die.

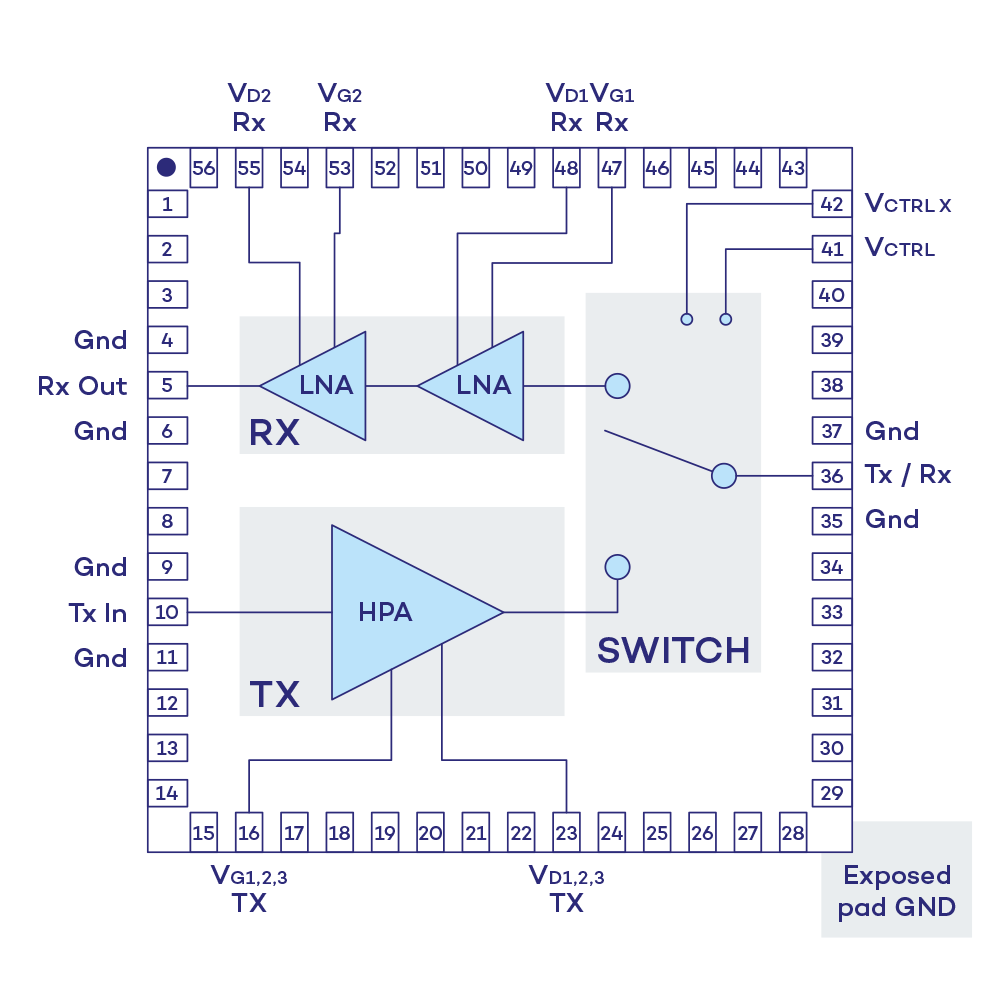

The device covers the 8.5 to 10.5GHz band- width. It is including a switch used to commute the receiver or the transmitter channel to the common access. The transmitter channel is composed by a 3 stages power amplifier and is capable to deliver more than +40dBm of output power at the common access. The receiver channel is composed by 2 low noise amplifiers.




  • Transceiver HEMT GaN/SiC MMIC.
  • Wide band: 8.5 to 10.5GHz.

    50ΩRF AC coupled TX Input, RX Output, Common

    Tx Output Psat : 40dBm

    Tx Gain >+20dB

    Rx Gain >+30dB

    Rx Noise Figure : 5dB

    Package: QFN 8×8 mm 56 Lead
