The VWA 5001135 AA is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz.
The device has a linear gain of 19dB and a typical noise figure of 1.0dB. Typical operating supply current is only 28mA with supply voltage at +3V and -3V.
It is manufactured on a PHEMT Technology and is especially suited for radar and for telecommuni- cation applications.
VM135D
8 to 12GHz - 18dB - 1.0dB NF
Die Dual Bias
Low Noise Amplifier
Die Dual Bias
Low Noise Amplifier
LOW NOISE AMPLIFIERS
DatasheetFeatures
- Operating frequency range: 8 to 12GHz
- Gain: 18dB
- Noise figure: 1.0dB
- Gain Flatness: +/- 0.7dB
- Input Return Loss: -10dB typ.
- Output Return Loss: -12dB typ.
- Power supply: 28 mA @ VDD = 3V, VSS = -3V

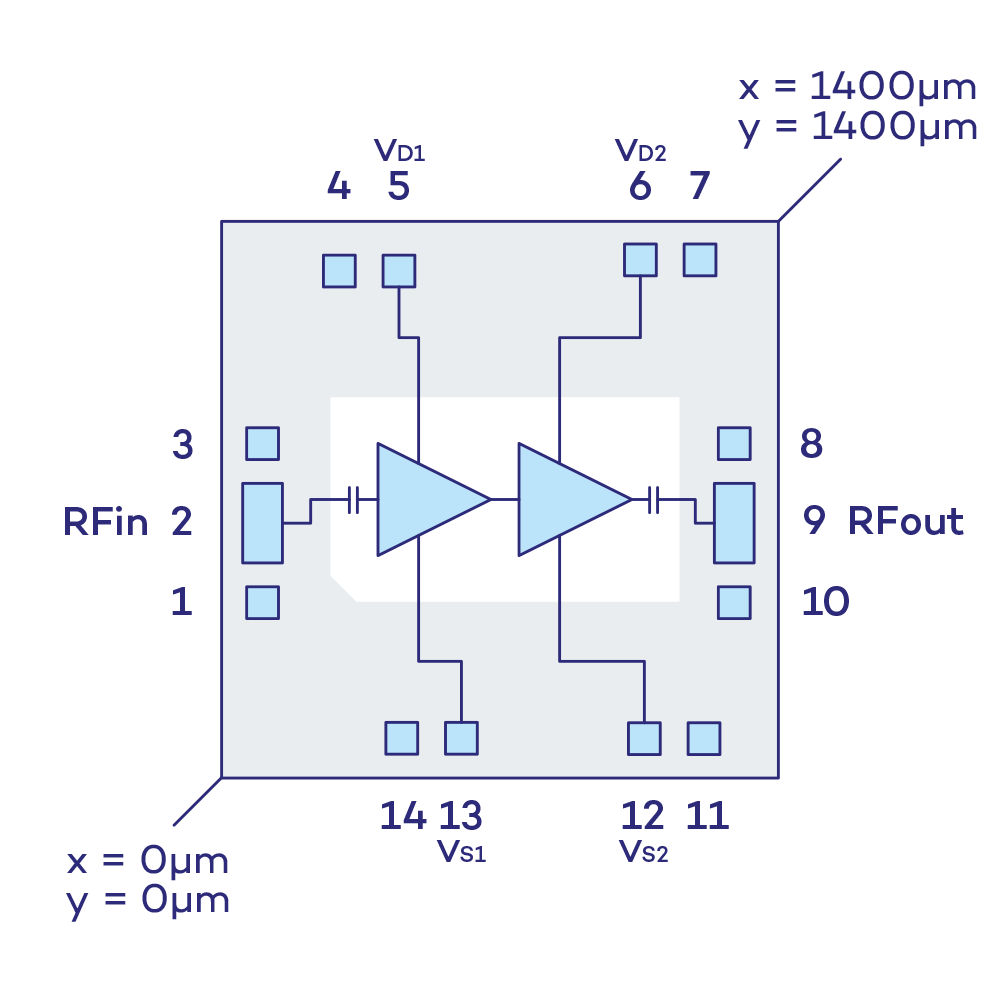

- Die Size: 1.4 x 1.4 x 0.1mm
