VM205Q

27 to 32GHz, 1.3dB NF, 26dB
Low Noise Amplifier

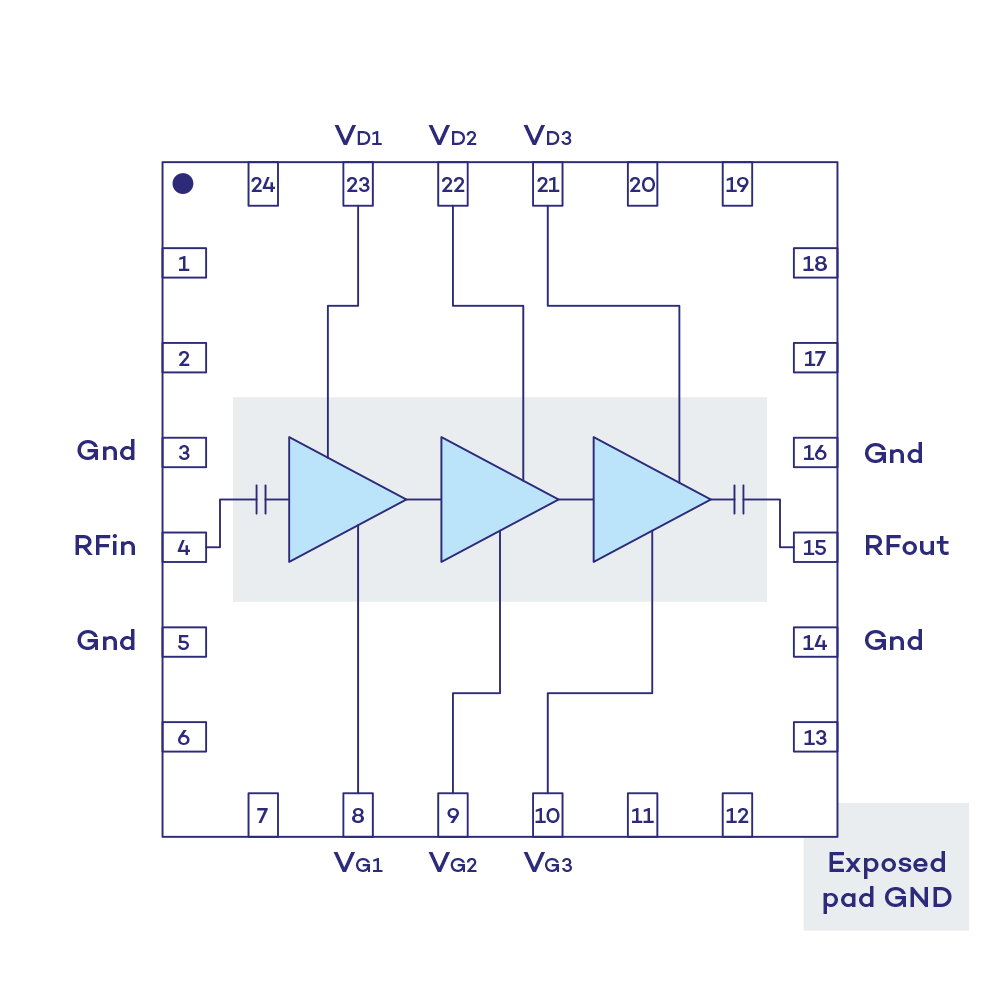

The VM205Q is 3 stage Low-Noise amplifier MMIC operating in the frequency range 27 to 32 GHz.
The device is packaged in a 4×4 mm 24 lead Plastic Surface Mount Package (ROHS). This component uses VM205D Vectrawave die.
The device has a linear gain of 26 dB and a typical noise figure of 1.3 dB. Output RF power is 20 dBm for a biasing current of 78 mA at 3.5V supply voltage.
It is manufactured with a 100nm pHEMT GaAs process and is especially suited for radar and for telecommunication applications.

LOW NOISE AMPLIFIERS

Download

Features

  • Operating frequency range: 24 to 30 GHz
  • Gain: 26 dB
  • Noise figure: 1.3 dB
  • P1dB = 20dBm – Psat= 21dBm
  • Gain Flatness: +/- 1 dB
  • Input Return Loss: -8 dB typ.
  • Output Return Loss: -10 dB typ.
  • Power supply: 78 mA @ VD=+3.5 V, VG=-0.58V typ.
  • Package Used: QFN 4×4 mm 24 Lead
