The VWA5000091AA is a transceiver chip de- signed on a 0.25μm HEMT (High Electron Mobi- lity Transistor) process on GaN/SiC technology.

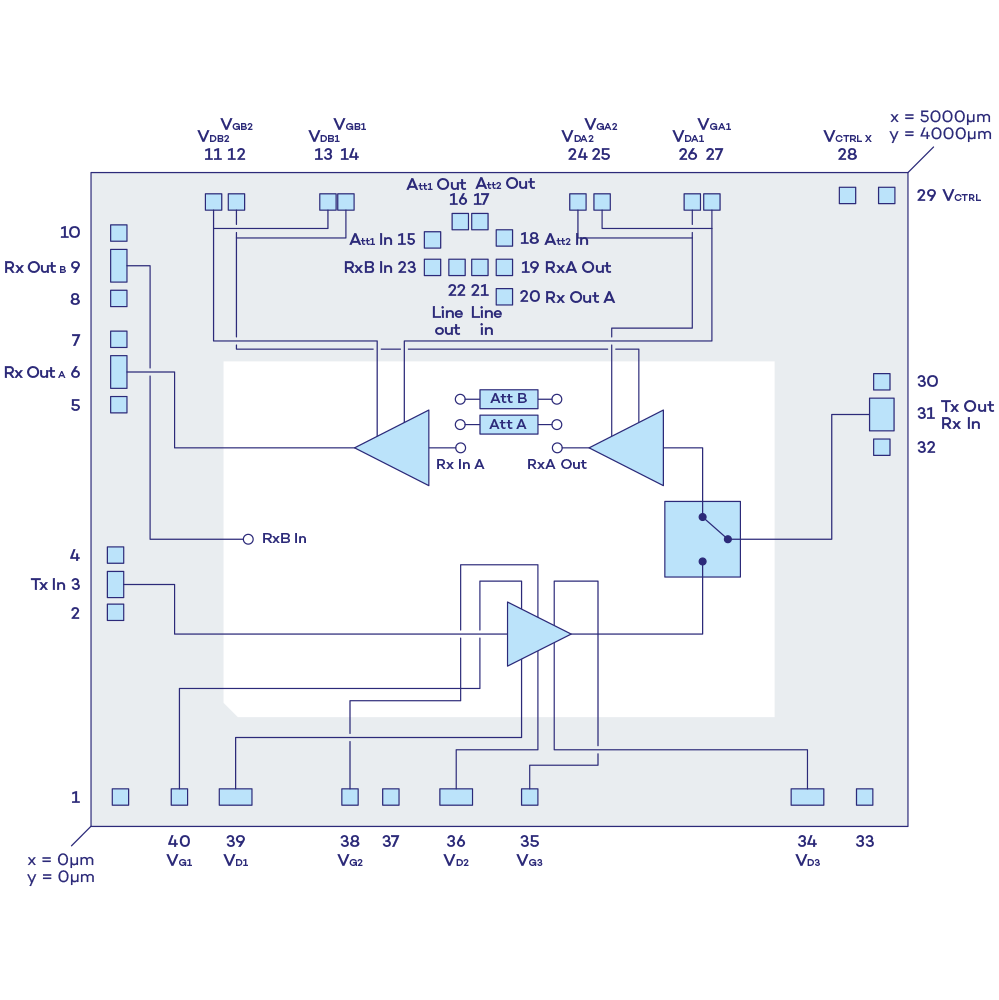

The device covers the 8.5 to 10.5GHz band- width. It is including a switch used to commute the receiver or the transmitter channel to the com- mon access. The transmitter channel is composed by a 3 stages power amplifier and is capable to deliver more than +40dBm of output power at the common access. The receiver channel is composed by a low noise amplifier and can be completed by a second embeedded low noise amplifier and inter-stage attenuators, according to the chosen cabling configuration.
VM091D
8.5 to 10.5GHz / 20dB / 40dBm
GaN/SiC Transceiver chip
GaN/SiC Transceiver chip
TRANSCIEVER
DatasheetFeatures
- Transceiver HEMT GaN/SiC MMIC.
- Wide band: 8.5 to 10.5GHz.
- 50ΩRF AC coupled TX Input, RX Output,Common.
- Tx Output Psat >+40dBm
- Tx Gain >+20dB
- Rx Gain >+20dB
- Rx Noise Figure <4dB
- Chip size: 5 x 4 x 0.1 (mm)
